Line Media Research Co., Ltd. Product information [IPA-200]

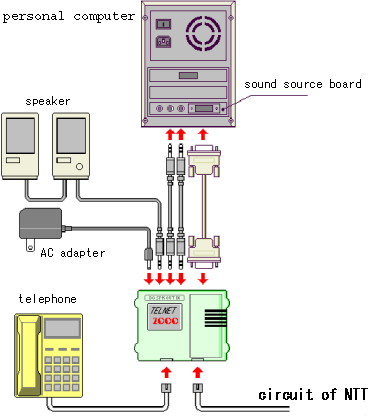

Connection figure


Connection figure
IPA-200 connection terminal
Connection tip 		Connection tip
TEL Telephone handset
LINE NTT circuit
DC AC adapter
SPK Speaker
OUT PC sound source board
(MIC)
IN PC sound source board
(SPK)
Fifteen pin connectors PC sound source board
(A/the game port)




Usage
When you call the Internet telephone (When shortening registration is used)
  1. First raise the receiver of a telephone and push the shortening number registered. (Example 1 #)
  2. A partner appears in a telephone and you talk.
  3. A receiver is placed after a conversation end.
In the case that you call Internet telephone (When applying from direct IP)
  1. First raise the receiver of a telephone and push the IP address of partner. (Example 210*210*1*1 #)
  2. A partner appears in a telephone and you talk.
  3. A receiver is placed after a conversation end.
When receiving an Internet telephone
  1. The calling sound from a partner sounds from a speaker.
  2. You raise the receiver of a telephone and talk.
  3. A receiver is placed after a conversation end.
When telephoning ordinary
  1. You raise the receiver of a telephone handset and push "# #". (A telephone handset changes to a general telephone circuit. )
  2. You push the phone number of a partner.
  3. A partner appears in a telephone and you talk.
  4. A receiver is placed after a conversation end.
When telephoning ordinary
  1. Call sound sounds from telephone.
  2. A partner appears in a telephone and you talk.
  3. A receiver is placed after a conversation end.
